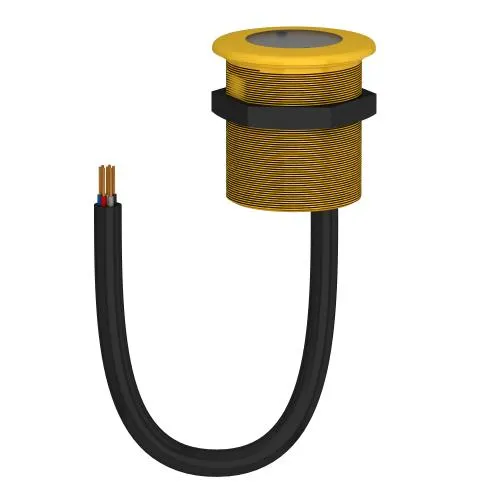

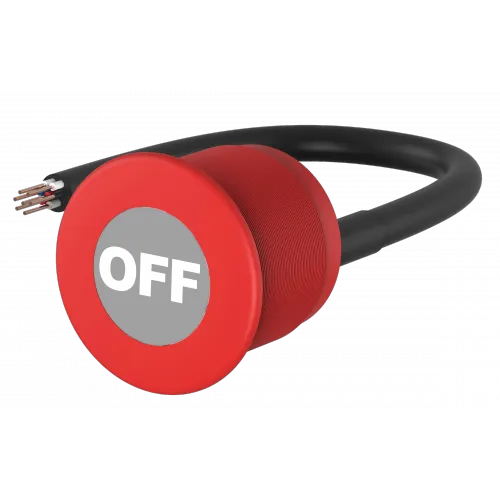

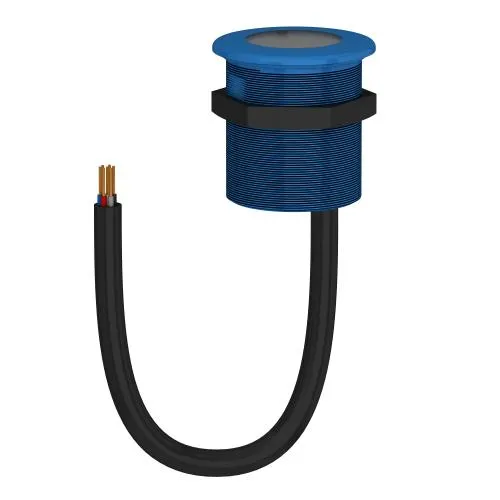

B22 and b30 series

« Back to list
From €35

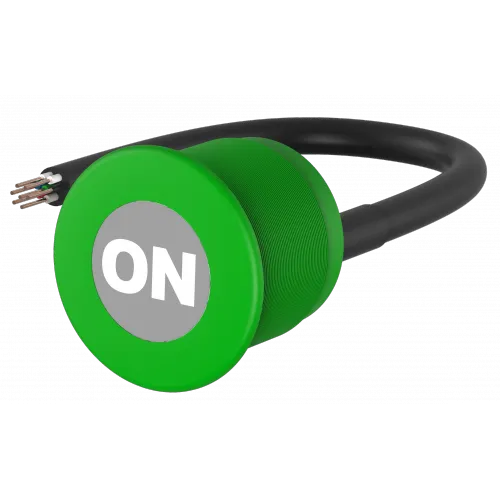

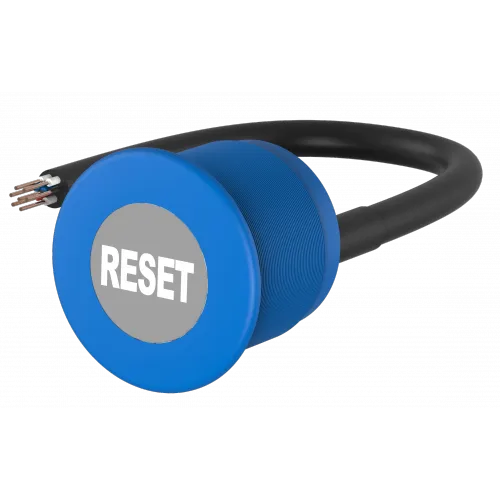

Capacitive technology luminous bicolor touch control button Immunity to water splashes Momentary, bistable or timed feature Up to two electrical contacts

Number of cycles
100 million at 200 mA
Standard activation distance
0 mm
Remote activation on demand
1.5 mm
Electrical contact
1 NO, 2 NO, 1 NO + 1 NF, 400mA/24V
Features to choose from
  • ON/OFF = bistable. One pulse switches the contacts and another pulse places them at rest
  • ON/duration/OFF = delayed stop 90s "timer" feature (other value on request)
  • Offset ON = delayed start. To confirm the request the button must be held for 350ms (other values on request)
  • ON/ON = momentary and protection against fraud. The action is canceled if the finger or an organic material is present longer than 5s
Indication by bicolored LED with effects:
  • Version "BJ" solid blue and flashing yellow
  • Version "VSR" green shimmer and flashing red
  • Version "VR" solid green and flashing red

Bicolor LED indication by external control
version "OL"
Sensory indicator for the visually impaired
B30H with vibrator and B30Z with buzzer

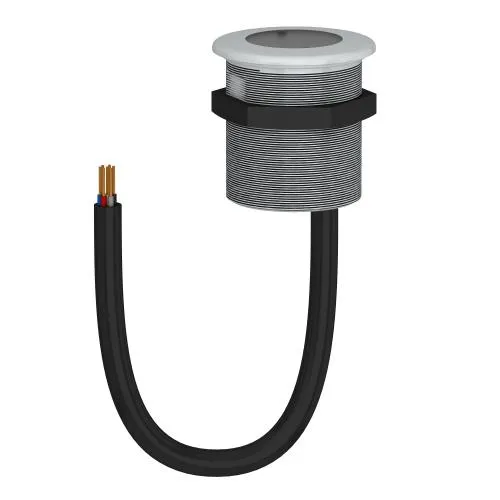

Body color
black, gray, white, red, opal green, yellow, green

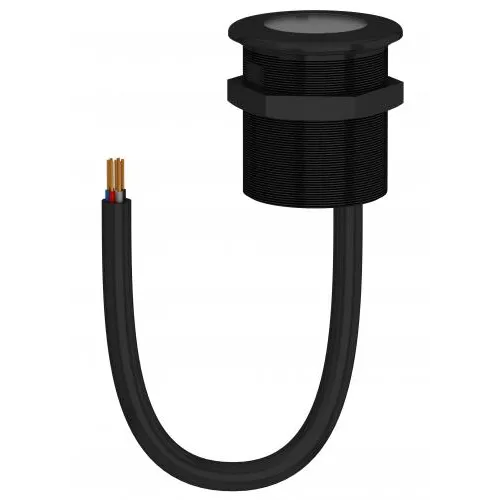

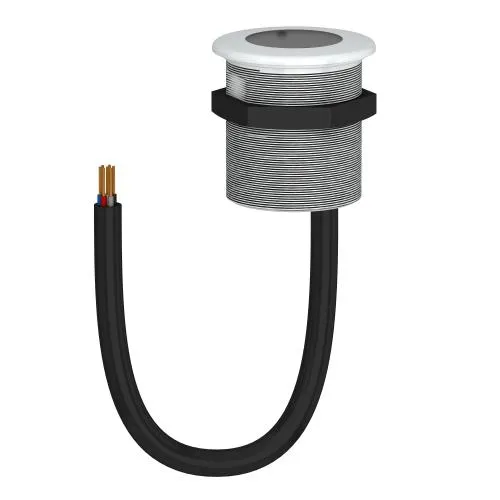

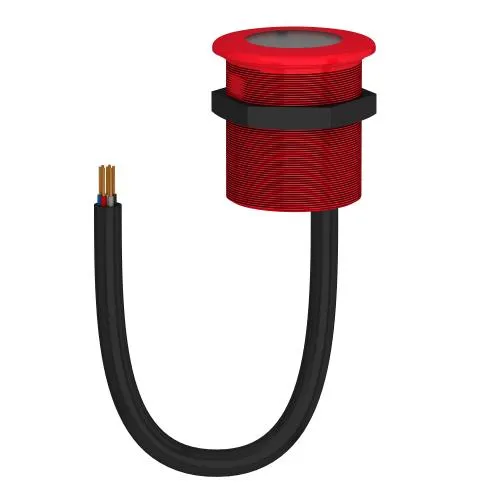

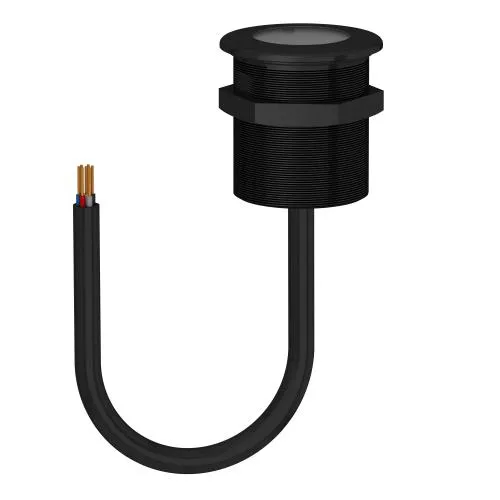

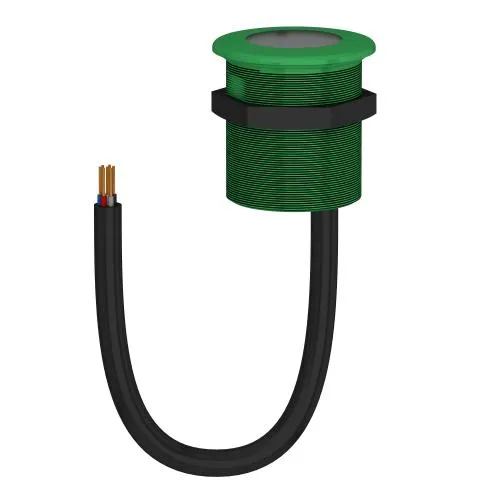

Attaching B22
M22 screw thread with nut and seal provided

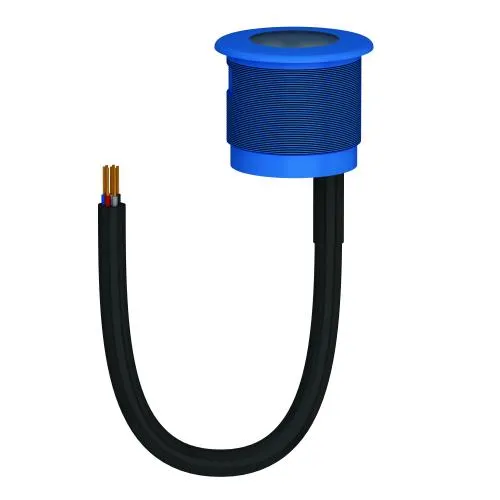

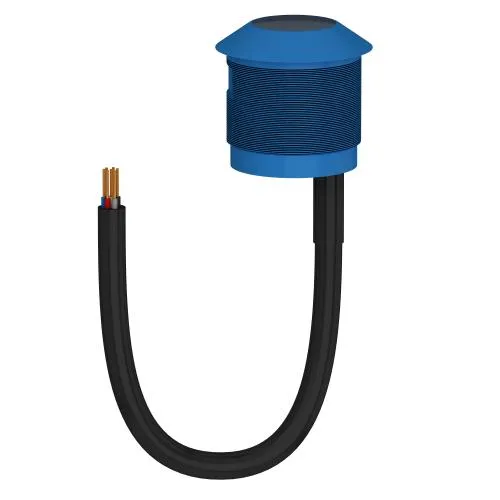

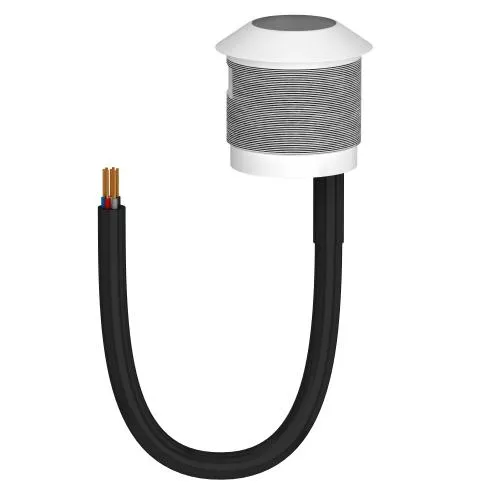

Attachment B30
M30 screw thread with nut and seal provided
Material
TR90UV
Food contact
Yes
Resistance to washing
Yes
Anti-vandalism
Yes
Electrical connection:

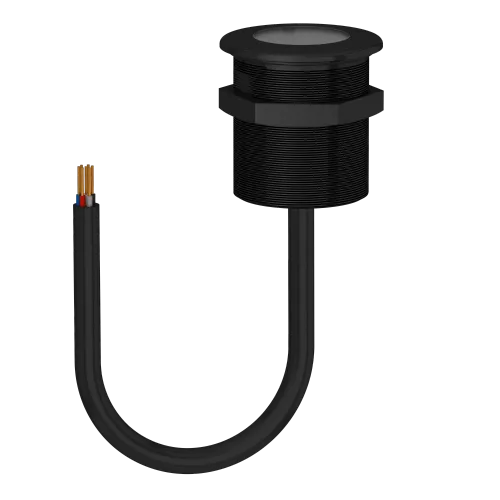

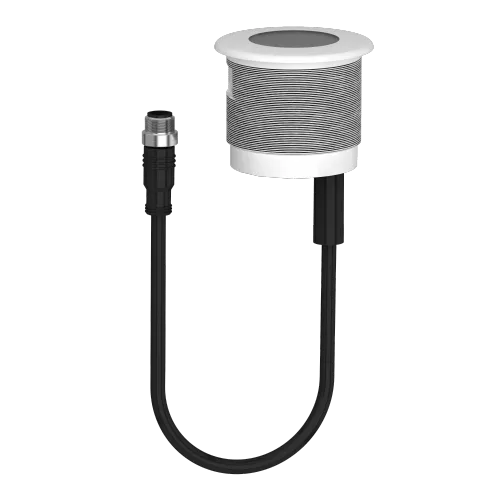

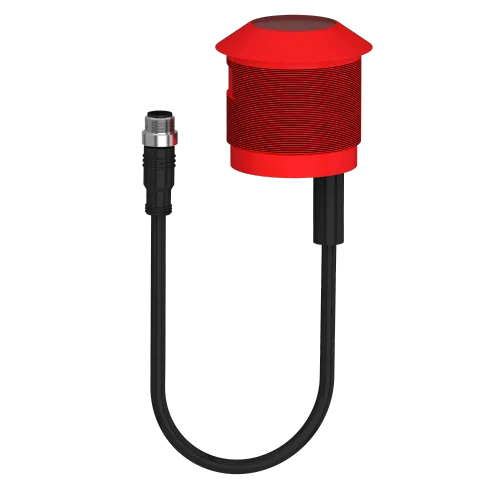

  • 3m cable or 50cm cable with M12 connector (UL20549 PUR) or 1.5 mm²

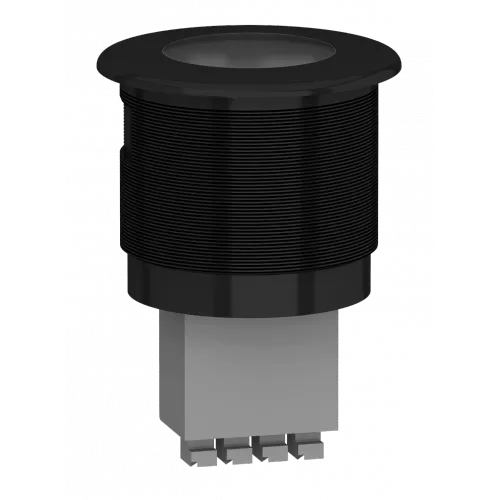

  • screwless connector or 0.5mm² screw connector
Waterproofed version CC
IP 69K
Waterproof version CV
  • IP 69K

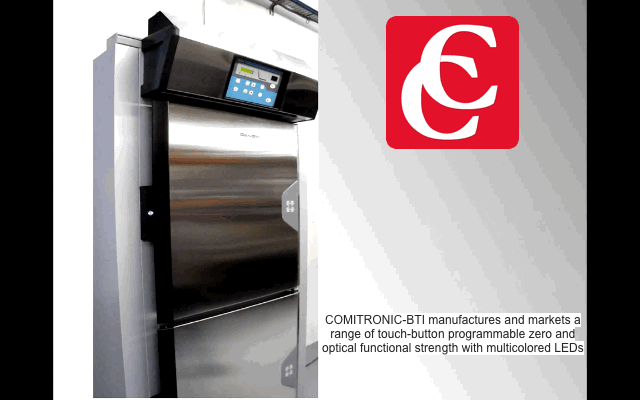

Application example :

Options :

Quantity :

minimum Order Quantity : 10 items

Price :

€35.00
