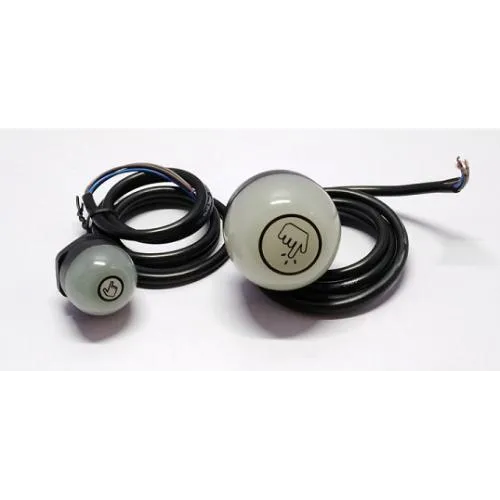

Cc30t - 30mm illuminated touch button

« Back to list
From €82

Two colors indicator, 30mm diameter, save space Easily actuated with bare hands or work gloves IO logic build in?clear indication of different status IEC IP69K suitable for harsh environments

Power supply : DC 24V (±10%)
R Y G B Each color : MAX 50mA @24V
IO Model Output :
Max Load : 150mA
Output state saturation voltage : 2V(DC 10mA), 2.5V(DC150 mA)
Non-output state leakage current: <10uA(DC 30V)
IO Model effective input : > 7.2V? Input resistance 10K
Protection : Over current/Over voltage protection; Reverse, connection protection
Material :
Bases & covers : ABS(70%) +Polycarbonate (30%)
Light segment : Polycarbonate

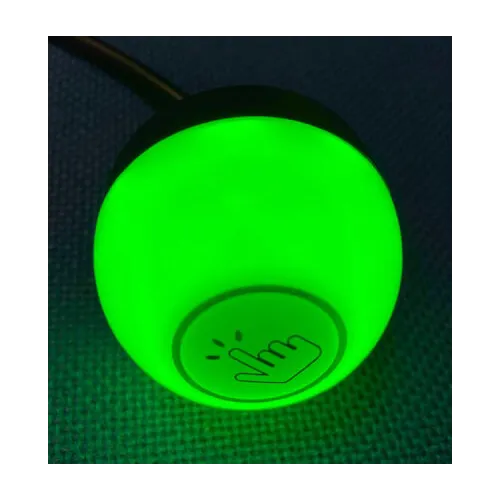

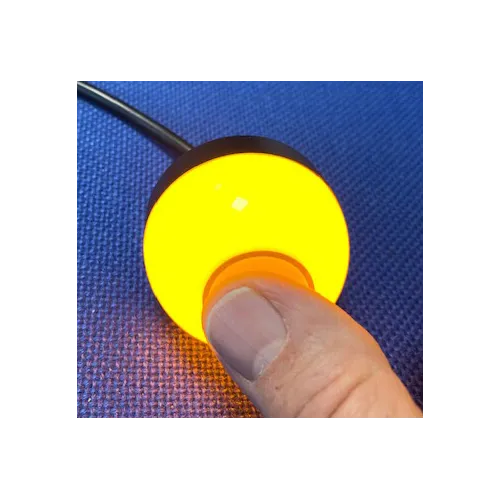

Indicator color : IO Type:Job Light -Green;Sense+ Job -Amber;Mis-pick(Sense, no job) -Red.Only two colors available in three status.
Connection : 4X0.3mm2 double insulated PVC cable
Connection : 0.3m cable with M12 Male QD or 1 meter cable
Working environment : -40 ° C to 50 ° C (? 40 ° F to 122 ° F)
Humidity : 95% at 50 ° C
IP Rating : IEC IP69K

Options :

Quantity :

Price :

€82.00

Manual

Manuels d'utilisation des produits

pdf

Datasheet CC30T

Download
