Works with protecting gloves EN388 Electrical contact does not trigger with water Capacitive technology
Benefits
Light indicator
|
|
Coonection terminals
|
Button lighting
|
|||
|
Contact version
|
B
|
A
|
Yellow
|
Blue
|
White
|
|
1OL
|
hi-Z
|
hi-Z
|
No
|
No
|
No
|
|
hi-Z
|
+24V
|
Yes
|
No
|
No
|
|
|
+24V
|
hi-Z
|
No
|
Yes
|
No
|
|
|
+24V
|
+24V
|
No
|
No
|
Yes
|
|
Item code
Wiring instructions
|

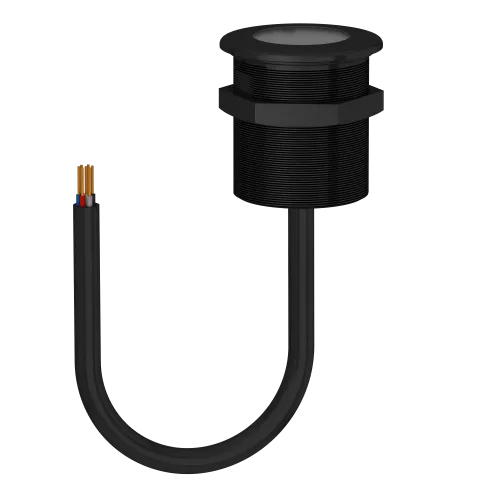

Version with 220 cm cable + M12/8P connector
|
 |
|
|
1OL
|
||
|
1
|
NO1 (250 mA)
|
|
|
2
|
+24VDC
|
|
|
3
|
Blue led input
|
|
|
4
|
Not connected
|
|
|
5
|
NO1 (250 mA)
|
|
|
6
|
Not connected
|
|
|
7
|
0V
|
|
|
8
|
Yellow led input
|
|
Technical features
|
Supply voltage
|
20 VDC to 30 VDC
|
|
Typical current
|
45 mA
|
|
Connection
|
M12 cord : 0.25mm2
|
|
Indicator
|
LED ring
|
|
Contact specification
|
250 mA / 24 V
|
|
Trigger protection
|
Quick press : yes
Water splash projection : yes
Dirtiness: yes
|
|
Operating temperature
|
-20 °C à +55 °C (80 °C washdown 30 min)
|
|
Detection distance
|
By touch (0 mm)
|
|
Overall dimensions
|
CC : D 35 mm x 46 mm/Fastening M30
|
|
Cable diameter/curvature radius
|
6 mm / 50 mm
|
|
Front sealing
Back sealing
|
IP 69K (+seal/nut)
IP 67
|
|
Fastening
|
1 x M30 nut
|
|
housing material
|
TR90 UV
|
|
Weignt with packaging
|
~ 100 gr
|
