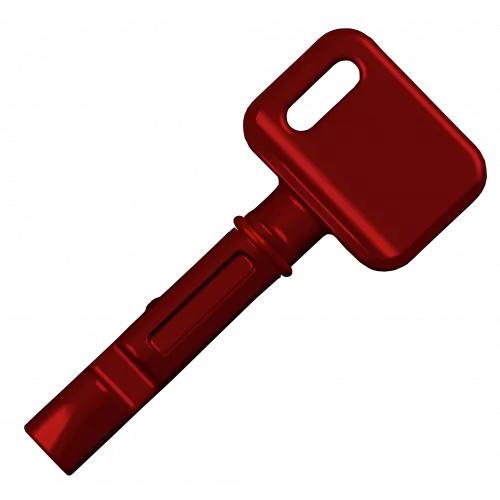

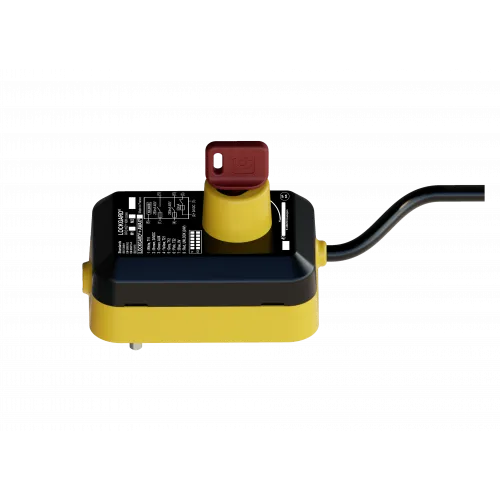

LOCKGARD M2.SP is an RFID key-operated safety switch with a key blocking device that allows : - the protection of an operator in a hazardous area by lockout. - the authorization of the energization of a dangerous machine The LOCKGARD® M2.SP RFID key interlock provides the complete PLe Cat. 4 safety chain according to ISO13849-1 when connected to an AWAX series enclosure. The LOCKGARD® uses an innovative principle offering control with a unique 16 million code RFID key.

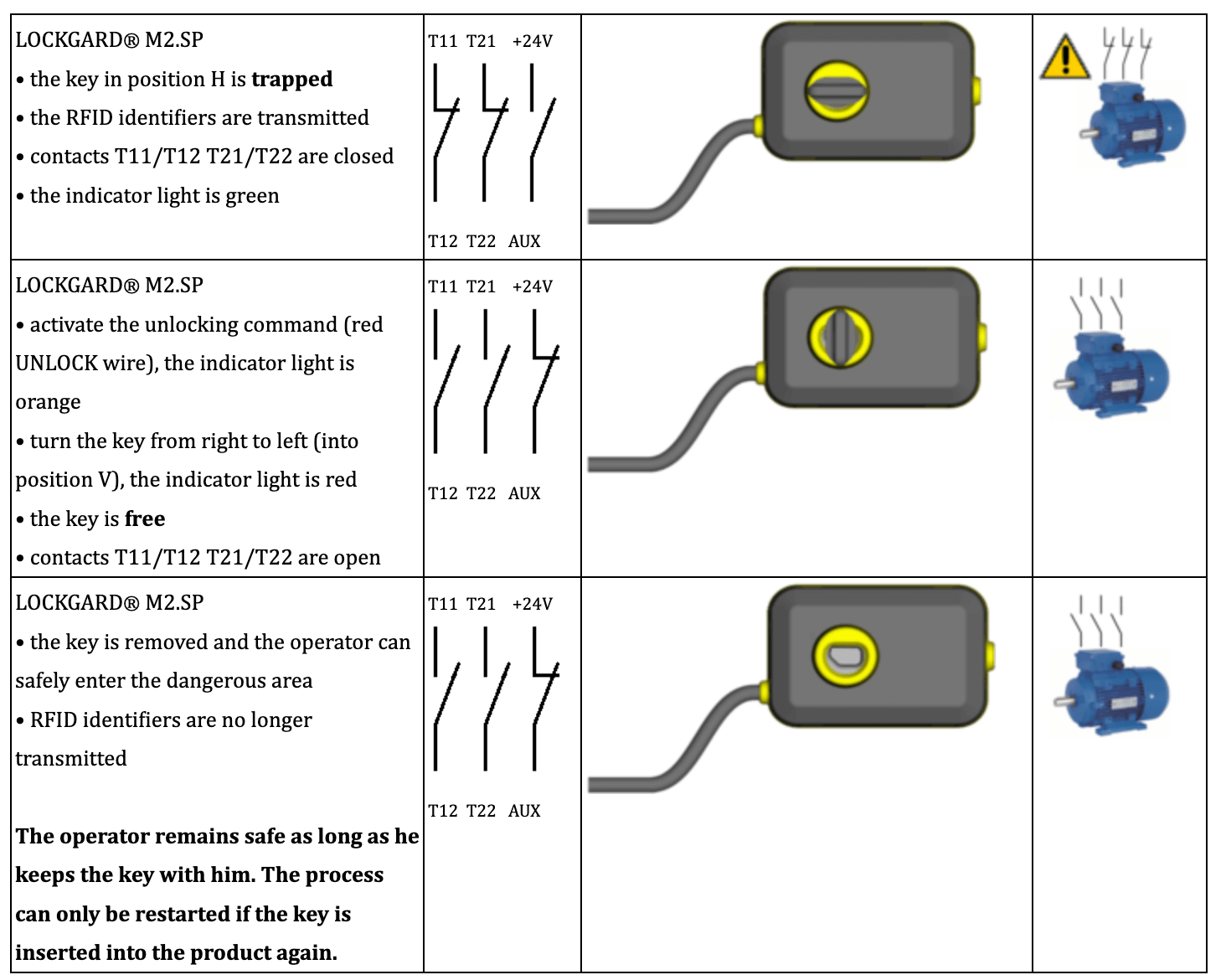

Operation :

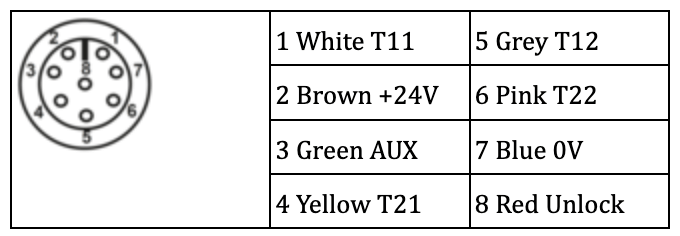

Connectivity :
LOCKGARD® version MKT50: 50 cm PUR cord with M12 connector at the end
LOCKGARD® version MKT220: 220 cm PUR cord with M12 connector at the end
Technical characteristics :
Technical data :
| Power supply type | DC |
| Voltage | 24VDC +/-10% |
| Current (max) | 380mA |
| IP(Enclosure/Cable) | IP65/IP65 |
| Weight | 300g |
| Operating temperature range | from -25°c to +50°C |
