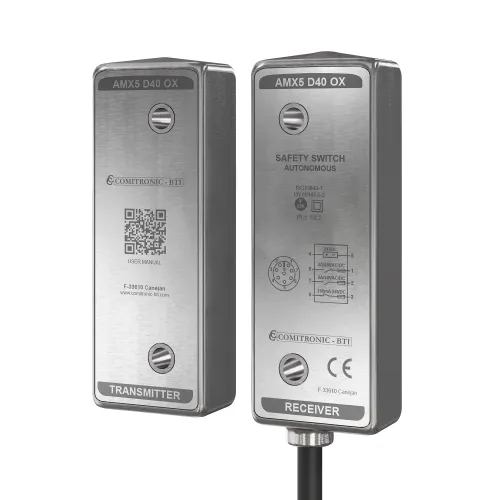

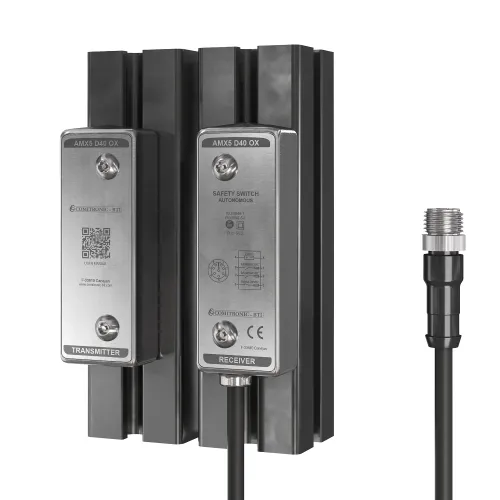

The AMX5/D40 is a stand-alone safety switch specially designed for mounting on 40 mm profiles.
Performance level without external controller | PL=d |
Performance level with AWAX controller | jusqu'à PL=e |
Safety category without external controller | 3 |
Integrated safety level | SIL2 |
Cycles to dangerous failure | B10d=2 000 000 to 2A |
Max. activation distance | 10 mm, hysteresis 2 mm |
Detection coding | tamper-proof mono-code |
Indication | LED indicating code recognition |
Reset | automatic |
Mounting | Profile screws |
Material | Mirror-polished 316L stainless steel |
Electrical connection | 50cm cord with M12 connector (UL20549 PUR) |
Waterproofing | IP69K |
Temperature | -25 °C to +60 °C |
Marking | INOX316L laser engraving with mechanical punching of the serial number for permanent traceability |
Certificates | TÜV Rheinland 01/205/5238/12 |
Licence Test Mark 968/EL 214.01/12 | Test Mark 968/EL 214.01/12 |
Safety/diagnostic contacts | 2 x NO 2A/48V redundant / 1 x PNP 250mA auxiliary |
