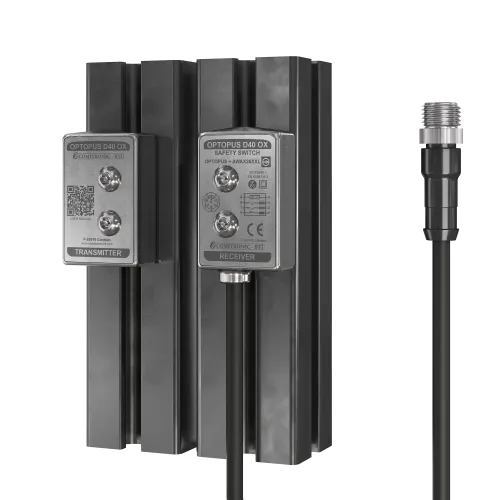

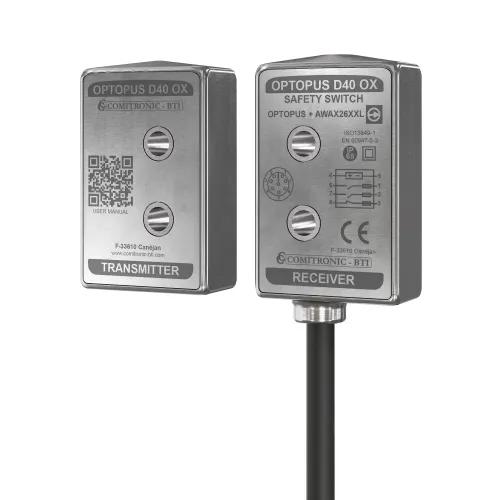

OPTOPUSDEC/D40 - NON-AUTONOMOUS SAFETY SWITCH FOR 40 MM PROFILES
Control the position of miniature doors/casings of dangerous machines Sensor with non-contact coded electronic technology. Complete safety management with AWAX controller. Low-cost solution for multi-access applications Performance level with AWAX controller: up to PL=e. Safety category: up to 4 with AWAX controller
Time before dangerous failure
| MTTFd = 420 years
|
Maximum activation distance
| 9 mm, Hysteresis 1 mm
|
Safety/diagnostic contacts
| 2 x NO 200mA max/24V redundant and 1 x PNP contact 250mA
|
Detection coding
| Single code tamper-proof
|
Indication
| LED indicating code recognition
|
Reset
| automatic
|
Mounting
| Screw on profile
|
Mounting position
| On 40 mm profile
|
Material
| Polished mirror INOX 316L
|
Electrical connection
| 50 cm cord with M12 connector (UL20549 PUR)
|
Sealing
| IP69K
|
Temperature
| -20 °C to +60 °C
|
Marking
| Laser engraving
|
