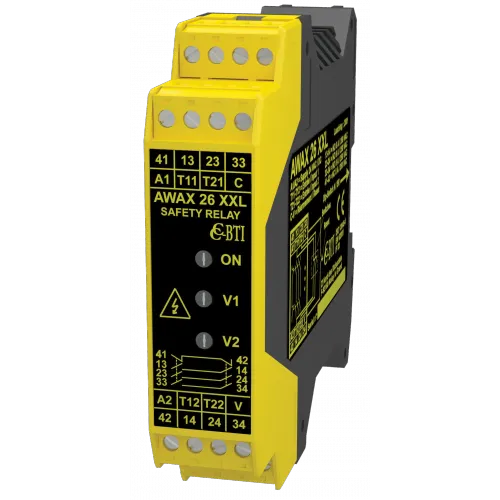

Awax 26xxl - safety relays - self check box

« Back to list
From €144

Sensor controller on Acotom process / mechanical switches / emergency stops Output contacts 8A/250V Anti-gluing control of the reset button Ultra-fast "DLC" short-circuit check : Short-circuit detection in 2 µs, self-resetting Safety management in a compact 22.5 mm formatat Performance level with AWAX controller: PL = e Safety category: 4 Safety Integrity Level: SIL 3 Power supply: 24VDC

AWAX26XXL : Safety/diagnostic contacts: 3x NO 8A/250V redundant / 1x NF 8A/250V serial (XXL version) or parallel (XXLP version)

AWAX26XXLT6 : Safety/diagnostic contacts: 3x NO 6A/250V redundant / 1x NC 6A/250V redundant serial (XXL version) or parallel (XXLP version)

    Time before dangerous failure
    MTTFd = 415 years
    Cycle before dangerous failure
    B10d=100,000 at 5A
    Risk duration
    20 ms max.
    Cable severing protection
    yes (opening of safety lines)
    Short-circuit and overload protection
    yes, using DLC (opening of safety lines and current limiting in contacts)
    2 µs ultrafast
    3 LEDs for diagnostics
    configurable by dip-switch (SR=Automatic, N=manual)
    symmetrical DIN 35mm rail on DIN 50022
    IP 20 electrical box
    Electrical connection
    Maximum 14 AWG (2.08 mm²) / 250V minimum
    -20°C to +60°C
    TÜV Rheinland 01/205/5168/11, UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)

    Options :

    Quantity :

    Price :


    URL User manual
