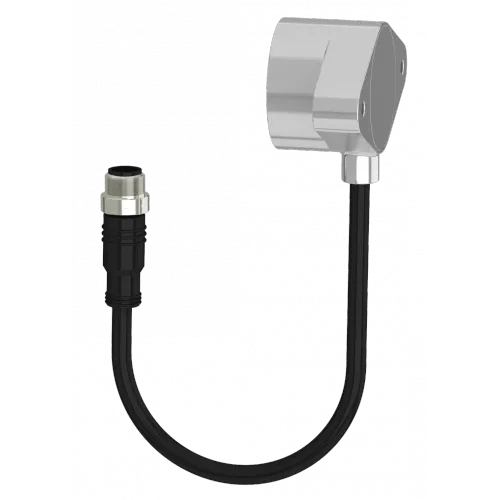

Thermostat safety

Name: Thermostat safety
Brand: COMITRONIC-BTI
SKU: TSM-2O-45C°
Price: 281.00 EUR
Availability: InStock

« Back to list

From €281

Contact

Redundant temperature sensing Protective mobile device opening authorization at low temperature INOX 316L housing Application on industrial oven doors or any area to be protected against excessive temperature

Mechanical cycle before failure: B10 = 1,000,000,000
Electrical cycle before failure: B10 = 100,000 at 400 mA
Safety Type: Positive
Operating mode: in contact with the wall to be detected
Activation temperature: 60°C or 90°C depending on the model
Disabling temperature: 50°C
Accuracy: +/- 3°C
Safety contacts: 2 x NF 400 mA/24VDC redundant below temperature threshold
Reset: automatic
Attachment: 2 M4 screws not included; anti-rotation lugs provided
Mounting position: 1 (4 x paste on screw-caps provided)
Material: 316L stainless steel mirror polished case,
Electrical connection: 50cm Ultra-soft silicone cord with M12 connector.
Water resistance: IP 69K
Temperature: -40°C to +180°C
Marking: laser engraving with mechanical punching of the serial number for permanent traceability
