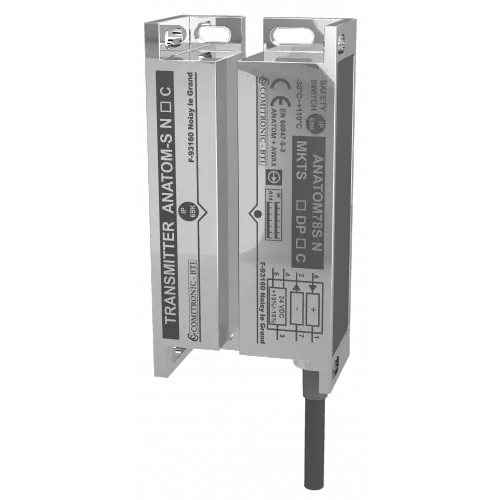

Anatom78s-n-mkts - stainless steel non-contact safety switch 316l

« Back to list
From €161

Position control for doors / casings on hazardous machinery Contactless coded electronic sensor Total safety management with an AWAX controller High temperature : -40 °C à +125 °C Level of performance with AWAX controller: up to PL = e Safety category: up to 4 with an AWAX controller

  • Time before dangerous failure: MTTFd = 100 years
  • Max. activation distance: 10 mm, 2 mm hysteresis
  • Safety contacts/diagnostics: 2 x NO 1A/24V redundant and
  • 1 x 250mA PNP contact
  • Detection encoding: mono-code inviolable
  • Reset: automatic
  • Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
  • Mounting position: 2 (double wall brackets)
  • Material: INOX 316L mirror polished
  • Electrical connection: 220cm Ultra-soft silicone cord with M12 connector.
  • Water resistance: IP69K (Switch) / IP67 (Connector)
  • Extreme temperature: -40°C to +125°C
  • Protective cover 316L stainless steel mirror polished "ref. + C" option
  • Marking: laser engraving with mechanical punching of the serial number for permanent traceability
