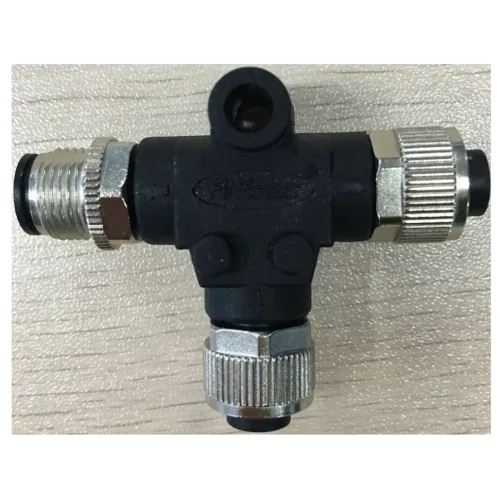

T-splitter m12.8

1. Easy installation
2. Simplified wiring
3. Quick installation

General / Applications :

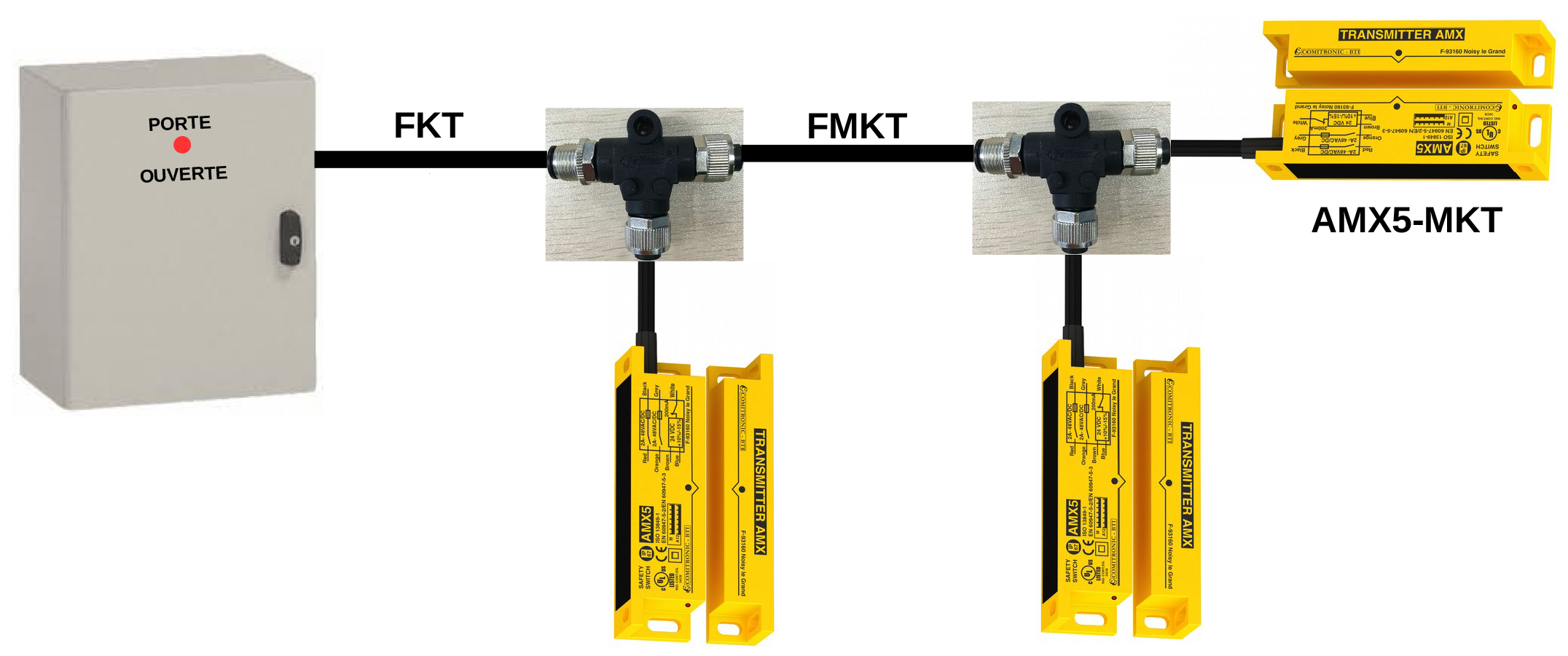

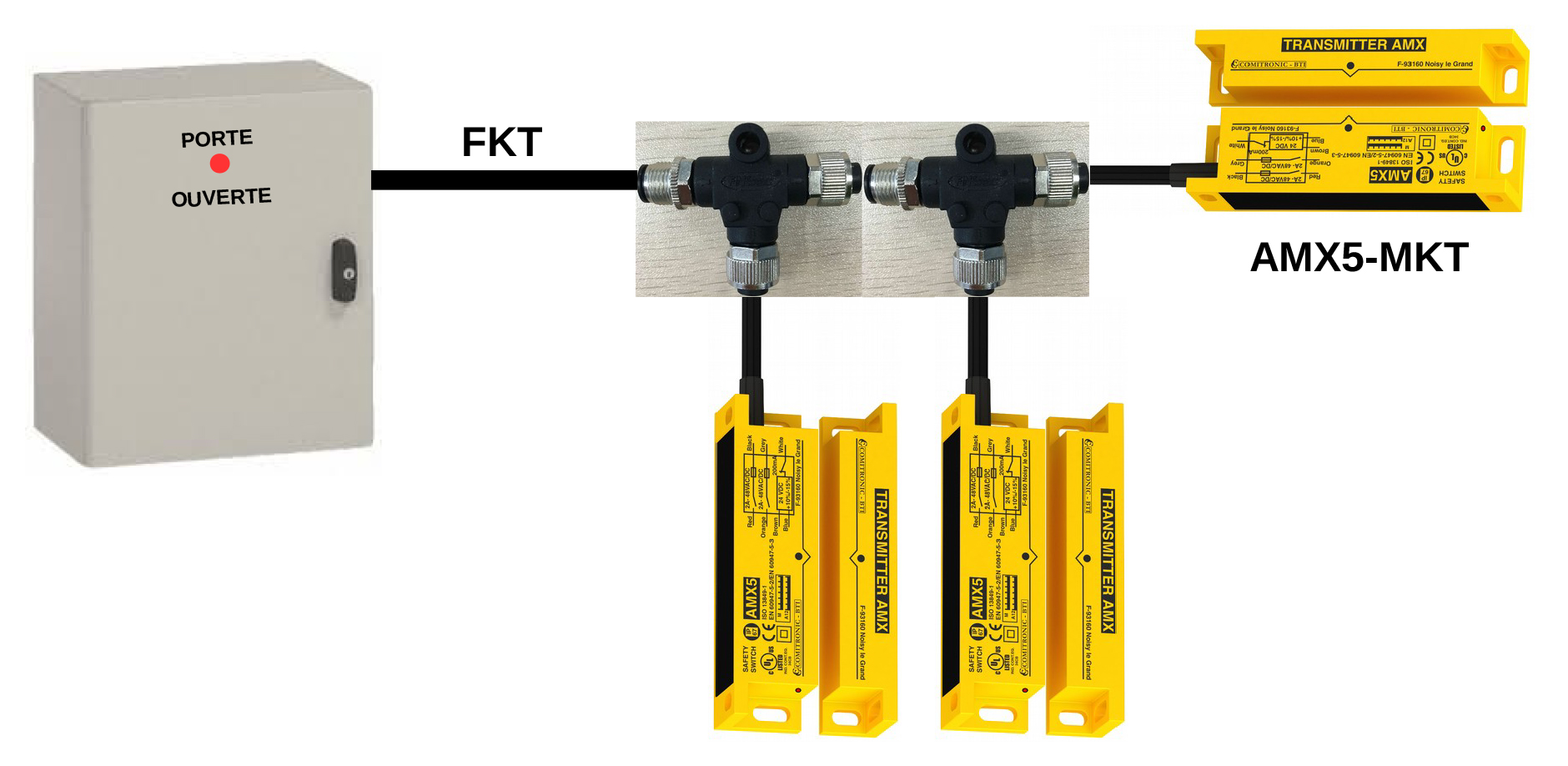

This product allows automatic connection of AMX5-MKT-485  or ANATOM78S series safety sensors while reducing wiring to a minimum. Indeed one cable connects the electric cabinet to the sensors. The series connection of contacts, power, and consolidation of auxiliary outputs are made automatically. It is possible to connect several T-SPLITER M12.8 cascades directly or via a FMKT cord (optional). The FKT cord for connection to the control cabinet is also optional.

Main specifications :

• Maximum voltage between two wires: 30 VDC
• Maximum current per wire: 2A
• Connection: 2 x M12 / 8p female and 1 x M12 / 8p male Fixation: 1 M4 screw
• Application temperature: -20 ° C to  80 ° C
• Dimensions: 57 mm x 44 mm x 20 mm
• Unit Weight: 26 gr
