Amx - safety switch stand alone

« Back to list
From €92
Top 10
iso-9001-6316fdebead62845319357.webp logo-etl-5008891-6316ff1bf170e101120389.png

Controls the position of hazardous machine doors/cases with integrated self-checking Contactless coded sensor with electronic technology and relays IP68 PA6 / IP69K INOX316L Performance level and category without external controller: Cat 3 PL=d according to ISO 13849-1 Performance level and category with AWAX controller: Cat 4 up to PL=e Integrated safety level: SIL 2 according to IEC 61508



Level of performance without an external controller
PL = d
Level of performance with AWAX controller
up to PL = e
Safety category without an external controller
3
Safety Integrity Level
SIL2
Cycle after dangerous failure
B10d = 2,000,000 at 2A
Max. activation distance
10 mm, 2 mm hysteresis
Security contacts / diagnostics
  •  AMX5 / AMX5CM12 : 2 x NO 2A / 48V redundant / 1 x PNP 250mA auxiliary
Security contacts AMX4
2 x NO 2A/48V redundant
Security contacts / diagnostics AMX3
1xNO 2A / 48V redundant (2 series contacts) / 1xNF 250mA auxiliary
Detection encoding
mono-code inviolable
Indicator
LED indicates code recognition
Reset
automatic
Attachment
4 tamper-proof M4 screws (optional ref: BH4)
Mounting position
2 (double wall brackets)
Material
PA6 or INOX 316L mirror polished (AMX3-OX/AMX5-OX or PC (AMX5CM12)
Electrical Connection
3, 6, 12m (UL2464 PVC) or 50cm cable with M12 connector (UL20549 PUR) (ref + MKT) or M12 metal base (AMX5CM12)
Water resistance
IP 68 (PA6) or IP 69K with stainless steel - new generation
Temperature
-25°C to +60°C
Marking
PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
Certification
TÜV Rheinland 01/205/5238/12
License Test
Mark 968/EL 214.01/12



Differences between the products in the AMX range :


AMX3 :

Safety relay compatible with "CO13XXL" only.



AMX4 :



AMX5 :


Ref Price Designation Quantity

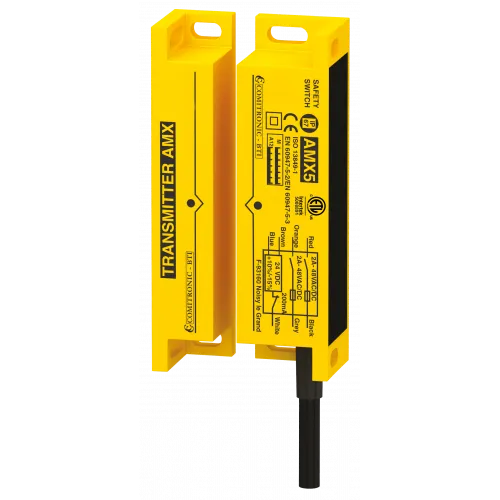

2-5514-2-amx-etl.png AMX3/3M €92.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX3/6M €108.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX3/12M €124.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX3/MKT €127.00 Safety switch stand alone
Add to cart

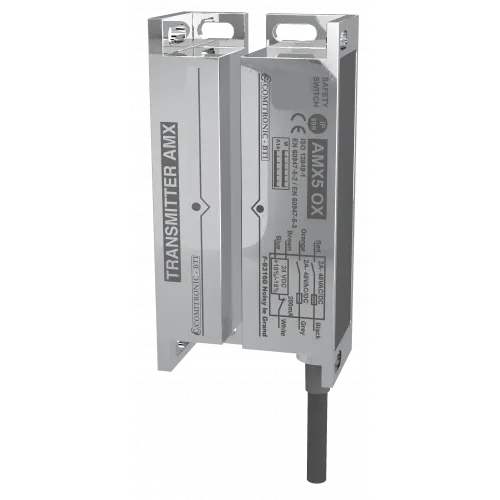

2-3967-2-amx5oxnoul.png AMX3/OX/3M €224.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX3/OX/6M €239.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX3/OX/12M €254.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX3/OX/MKT €257.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX4/3M €98.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX4/6M €115.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX4/12M €130.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX4/20M €168.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX5/3M €109.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX5/6M €125.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX5/12M €138.00 Safety switch stand alone
Add to cart
2-5514-2-amx-etl.png AMX5/MKT €133.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX5/OX/3M €239.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX5/OX/6M €253.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX5/OX/12M €267.00 Safety switch stand alone
Add to cart
2-3967-2-amx5oxnoul.png AMX5/OX/MKT €270.00 Safety switch stand alone
Add to cart

URL User manual

web Access

Manual

Manuels d'utilisation des produits

pdf

TÜV certification

Plan 3D - Step

Plan 3D & Step

zip

CAD AMX OX

zip

CAD AMX

Dimensions

Precise dimensions

jpg

Dimension
